The advantages of the 2D Gate:
- Superior sturdiness and durability
- Reinforced welded frame and double-wire mesh
- Adjustable hinges for 110° opening
Residential
Parks
Public
Industrial
Product Basic Parameters
The 2D Gate’s defining feature is its exceptional sturdiness. Built with high-quality materials, it is reinforced by a welded frame, double-wire welded mesh infill, and galvanized posts, forming a robust, long-lasting structure with superior anti-corrosion performance.
| Width | Height | Posts | Length of Post | Free passage | Post spacing | Space required |
| 2.00M (2 leaves 2x960mm) | 1.00M | 60x60x1.5mm | 1600mm | 2035mm | 2095mm | 2155mm |
| 1.20M | 60x60x1.5mm | 1800mm | ||||
| 1.40M | 60x60x2.0mm | 2000mm | ||||
| 1.60M | 60x60x2.0mm | 2200mm | ||||
| 1.80M | 60x60x2.0mm | 2400mm | ||||
| 2.00M | 60x60x2.0mm | 2600mm | ||||
| Width | Height | Posts | Length of Post | Free passage | Post spacing | Space required |
| 3.00M (2 leaves 2x1445mm) | 1.00M | 60x60x1.5mm | 1600mm | 3005mm | 3065mm | 3125mm |
| 1.20M | 60x60x1.5mm | 1800mm | ||||
| 1.40M | 60x60x2.0mm | 2000mm | ||||
| 1.60M | 60x60x2.0mm | 2200mm | ||||
| 1.80M | 60x60x2.0mm | 2400mm | ||||
| 2.00M | 60x60x2.0mm | 2600mm | ||||
The gate features a 40x40x1.5mm welded frame, with a 2D panel infill (5mm vertical wires, 6mm horizontal wires) and a 200x50mm center-to-center mesh size. Equipped with adjustable hinges, the gate leaf can open up to 110° for flexible installation.
Robust 40x40x1.5mm welded frame construction
2D double-wire panel infill (5/6mm wires, 200x50mm mesh)
Anti-corrosion coated posts for long-term use
Adjustable hinges with 110° opening range
Multiple color options available to match any fencing style
Opening Method
The opening direction of the CreaZen gate leaf
Right-hand or left-hand opening
Right-hand or left-hand pulling opening
You choose during assembly.
Installation Method
The installation of the CreaZen gate can be adapted to your site
Surface-mounted or in-ground installation
Concrete base or direct burial mounting
You choose according to your ground conditions.
Why Choose Us
We are a tusted monufacturer of high quaity fencing solutions, dedicated to delivering roducts that combine structura stength. losting beouty and relioble perfomance.
Premium quality stems from exquisite craft and solid factory strength, backed by official certificationsPrecision Welding | Professional Spraying | Secure Packaging Certified & Reliable Quality

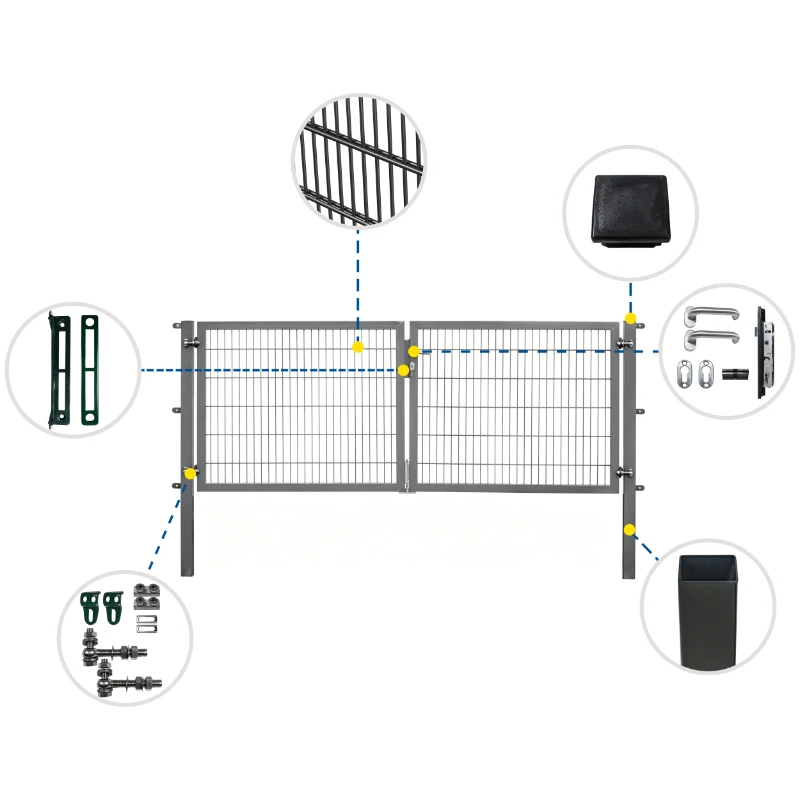

Accessories included with your gate
Accessories included with your gate

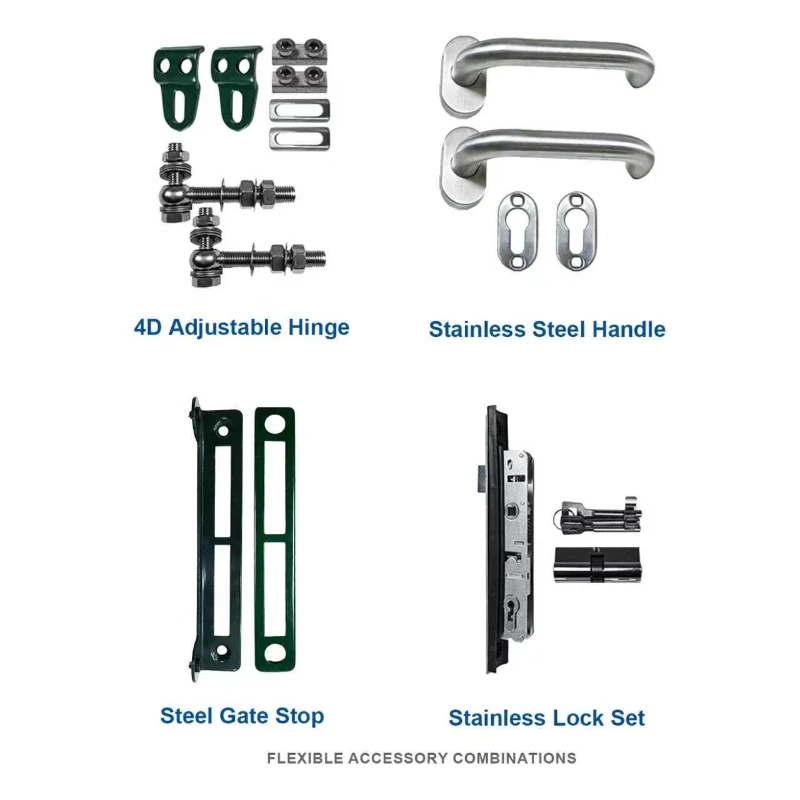

We will deliver a complete, high-quality accessory kit for your 2D gate:
- A stainless steel lock
- Two adjustable, hot-dip galvanized hinges (M16 diameter)
- Two aluminum handles
- One steel strike plate
OEM & Customization Options
- Frame specifications: Custom frame sizes (40x40x1.5mm standard) available
- 2D panel customization: Adjustable wire gauges (vertical/horizontal) and mesh sizes to meet specific requirements
- Finish & color: Galvanized + polyester-coated finish; custom RAL colors available on request
- Opening range: Standard 110° opening with adjustable hinges; custom angles available
- Post compatibility: Hinge length can be tailored to match your specific post cross-section
- Installation flexibility: Single-leaf configuration with reversible opening direction (push/pull, right/left) available
