The advantages of the 2D Gate:
- Excellent value for pedestrian entrances
- Enhanced strength from 2D double-wire infill
- Durable welded construction
Residential
Parks
Public
Industrial
Product Basic Parameters

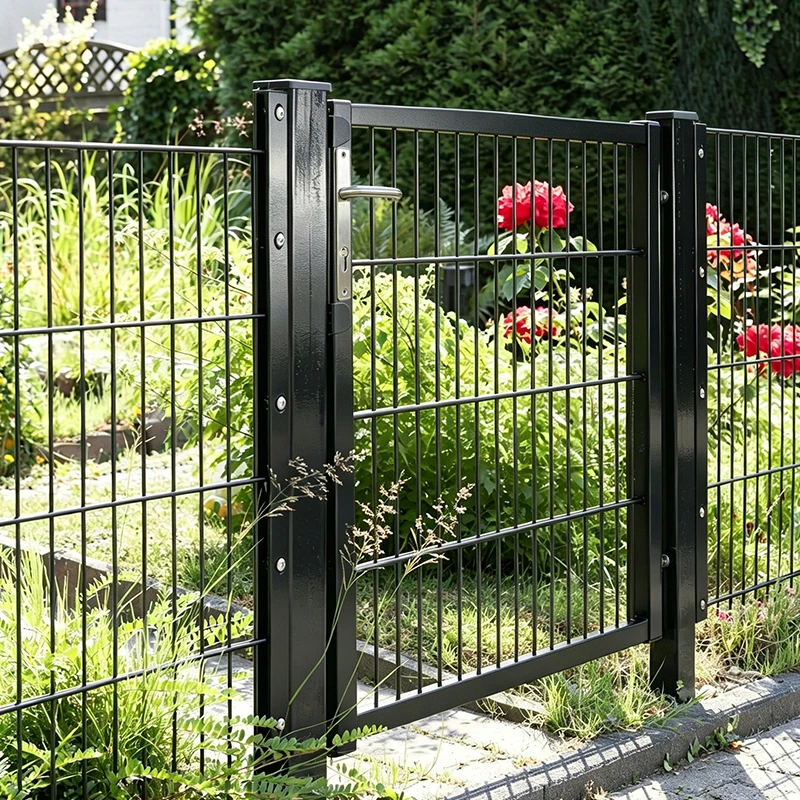

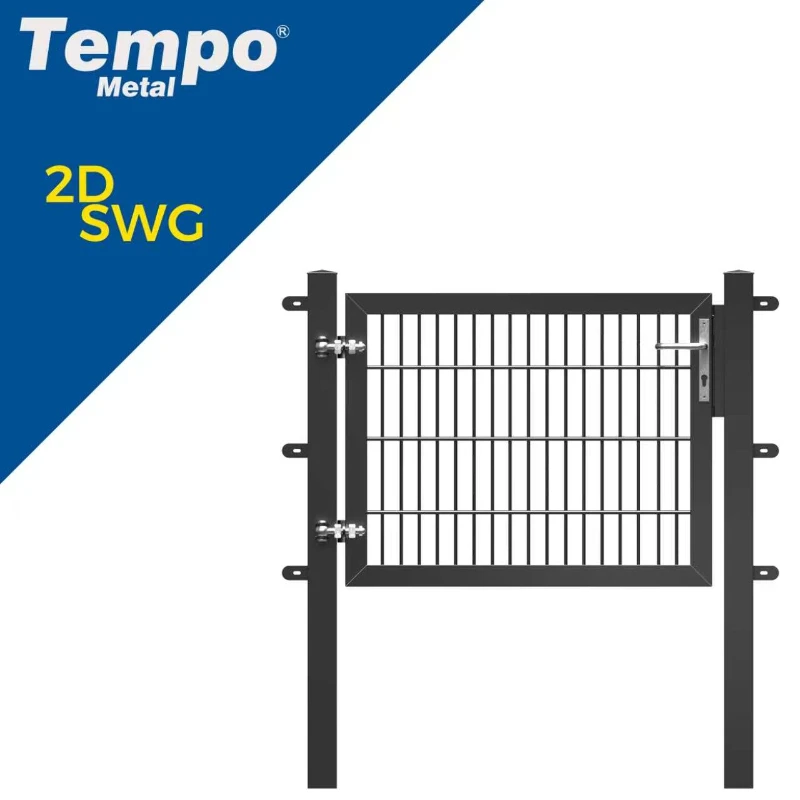

The 2D Gate is a single-leaf swing gate filled with 2D 6/5/6 double-wire panels, offering excellent value for money for pedestrian entrances. Its high-quality construction and double-wire infill deliver enhanced strength and durability.
| Normal Width | Height | Posts | Length of Post | Free passage | Post spacing | Space required |
| 1.00m (960mm) | 1.00m | 60X60X1.5mm | 1600mm | 1035mm | 1095mm | 1155mm |
| 1.20m | 60x60x1.5mm | 1800mm | ||||
| 1.50m | 60x60x2.0mm | 2100mm | ||||
| 1.80m | 60x60x2.0mm | 2400mm | ||||
| 2.00m | 60x60x2.0mm | 2600mm | ||||
| Normal Width | Height | Posts | Length of Post | Free passage | Post spacing | Space required |
| 1.50m(1445mm) | 1.00m | 60X60X1.5mm | 1600mm | 1520mm | 1580mm | 1640mm |
| 1.20m | 60x60x1.5mm | 1800mm | ||||
| 1.50m | 60x60x2.0mm | 2100mm | ||||
| 1.80m | 60x60x2.0mm | 2400mm | ||||
| 2.00m | 60x60x2.0mm | 2600mm | ||||

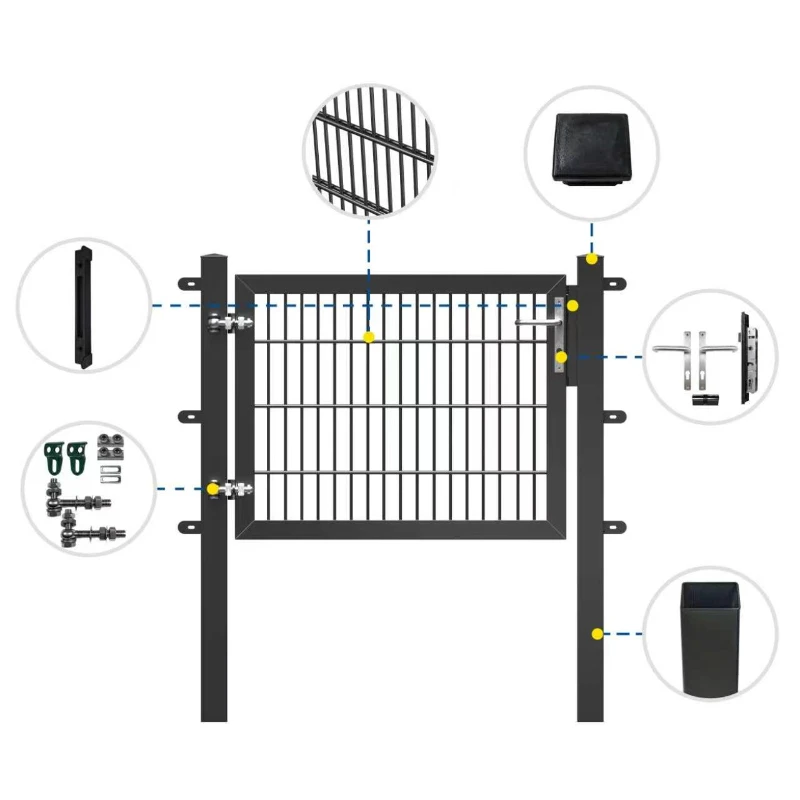

Built with a 40x40x1.5mm welded frame, the 2D panel is fully welded into the frame (not surface-mounted) for maximum stability. The panel features 5mm vertical and 6mm horizontal wires, with a 200x50mm center-to-center mesh size. Posts are galvanized and polyester-coated for long-lasting corrosion resistance.
Built with 40x40x1.5mm welded steel frame
2D 6/5/6 double-wire panel infill (200x50mm mesh)
Full internal welding (not surface-mounted) for stability
Adjustable M16 hot-dip galvanized hinges
Galvanized + polyester-coated finish for durability
Opening Method
The opening direction of the CreaZen gate leaf
Right-hand or left-hand opening
Right-hand or left-hand pulling opening
You choose during assembly.
Installation Method
The installation of the CreaZen gate can be adapted to your site
Surface-mounted or in-ground installation
Concrete base or direct burial mounting
You choose according to your ground conditions.
Why Choose Us
We are a tusted monufacturer of high quaity fencing solutions, dedicated to delivering roducts that combine structura stength. losting beouty and relioble perfomance.
Premium quality stems from exquisite craft and solid factory strength, backed by official certificationsPrecision Welding | Professional Spraying | Secure Packaging Certified & Reliable Quality

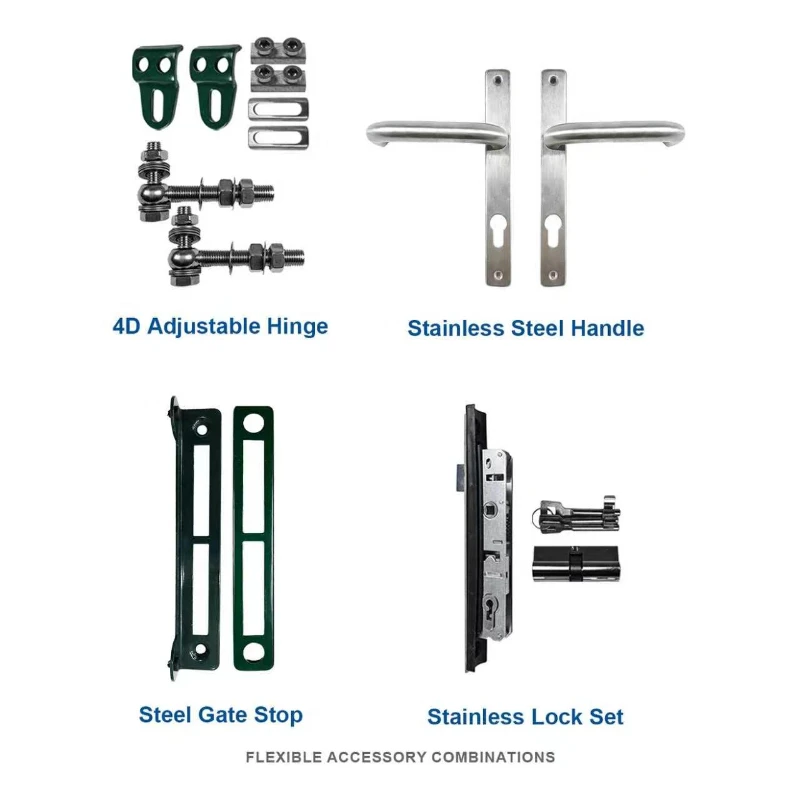

Accessories included with your gate
We will deliver a complete, high-quality accessory kit for your 2D gate:
- A stainless steel lock
- Two adjustable, hot-dip galvanized hinges (M16 diameter)
- Two aluminum handles
- One steel strike plate
OEM & Customization Options
- Frame & panel: Custom frame sizes and mesh specifications available
- Wire gauges: Custom vertical/horizontal wire diameters on request
- Finish & color: Galvanized + polyester-coated finish; custom RAL colors available
- Installation: Hinge length can be tailored to match your post cross-section
