The advantages of the 3D Gate:
- Ideal for pedestrian entrances
- Seamless compatibility with various fences
- Durable galvanized + polyester-coated finish
Residential
Parks
Public
Industrial
The advantages of the 3D gate

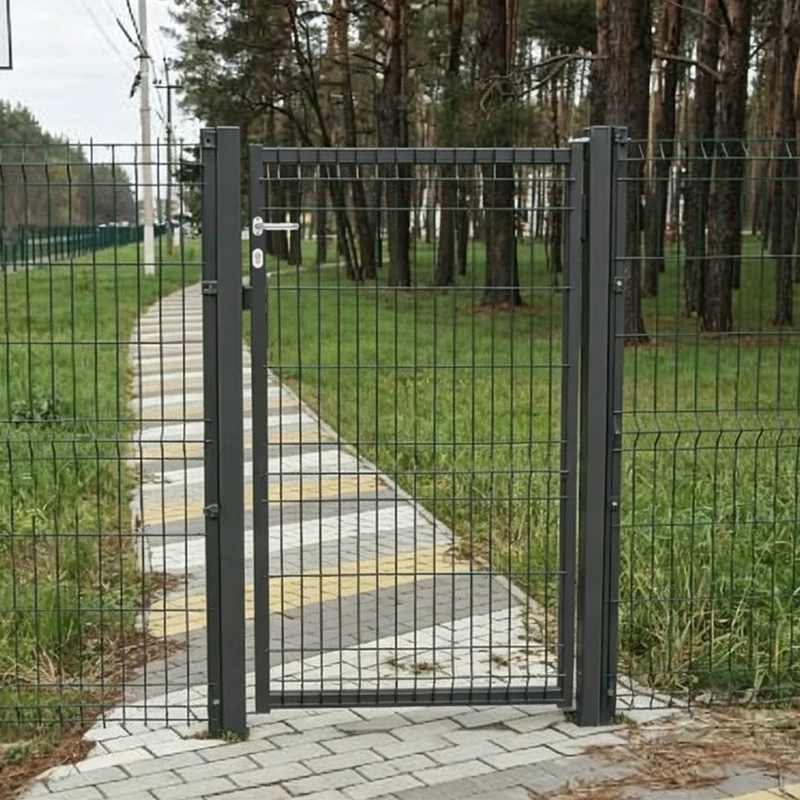

This single-leaf gate, filled with a 3D panel, is the ideal solution for pedestrian entrances and blends seamlessly with a variety of fence systems.
| Surfacetreatment | Galvanized+Powder coating |
| Colors | Green RAL6005 Grey RAL7016 and other colors |
| Height | 1.00m I 1.20m l 1.50m l 1.80m l 2.00m |
| Width | 1.00m I 1.20m l 1.50m |
| Filling | 200x55mm |
| Wire diameter | 5mm |
| Post | 60x60mm |
| Frame | Verticals: 40×40mm I Horizontals: 40×30mm |
| Accessories | Adjustable M16 hinges lock and cylinder |
| Opening | 110° pushing straight (reversible) |
| Options | Different Accessories |

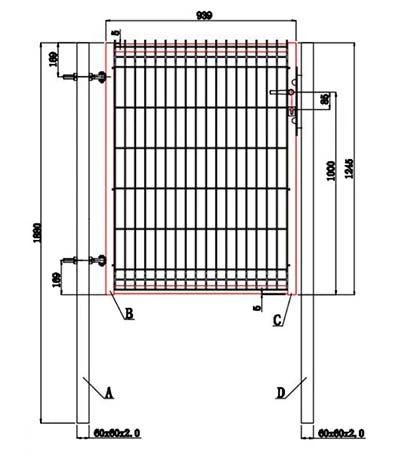

Built with a 40x40x1.5mm welded frame, the 3D swing gate features galvanized and polyester-coated posts for long-lasting corrosion resistance. It is available in RAL 6005 Green and RAL 7016 Anthracite Gray.
40x40x1.5mm welded steel frame construction
3D panel infill for versatile fencing compatibility
Hot-dip galvanized + polyester-coated posts
Adjustable M16 hot-dip galvanized hinges
Available in RAL 6005 Green & RAL 7016 Anthracite Gray
Opening Method
The opening direction of the CreaZen gate leaf
Right-hand or left-hand opening
Right-hand or left-hand pulling opening
You choose during assembly.
Installation Method
The installation of the CreaZen gate can be adapted to your site
Surface-mounted or in-ground installation
Concrete base or direct burial mounting
You choose according to your ground conditions.
Why Choose Us
We are a tusted monufacturer of high quaity fencing solutions, dedicated to delivering roducts that combine structura stength. losting beouty and relioble perfomance.
Premium quality stems from exquisite craft and solid factory strength, backed by official certificationsPrecision Welding | Professional Spraying | Secure Packaging Certified & Reliable Quality

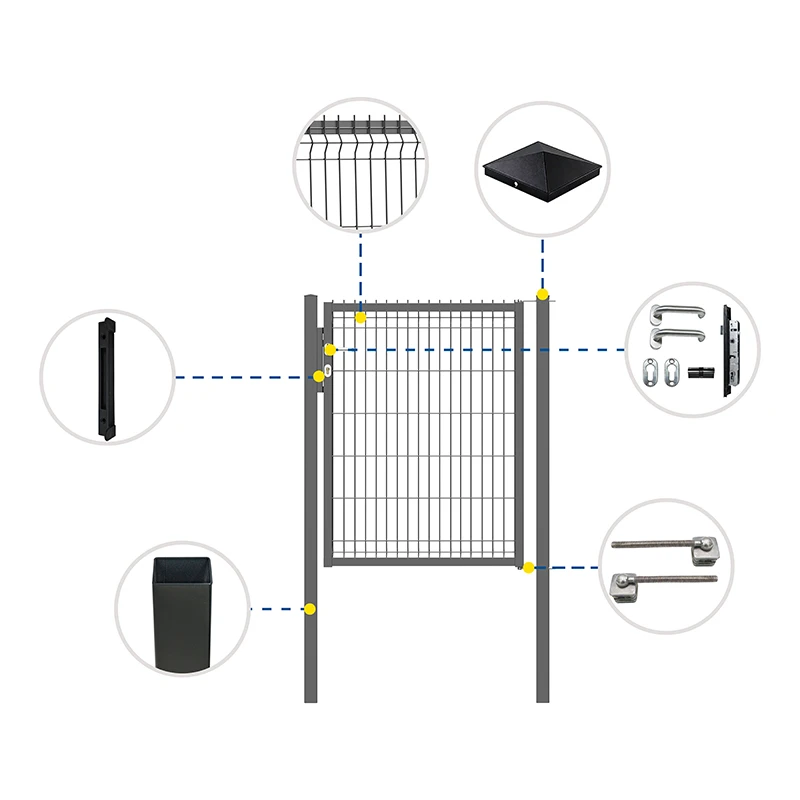

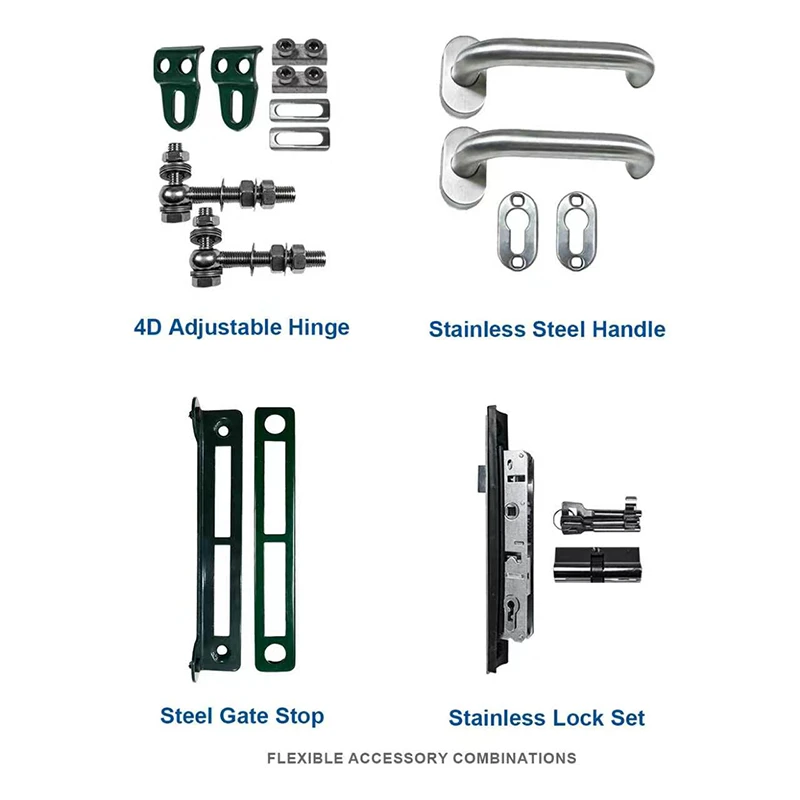

Accessories included with your gate
We will deliver a complete, high-quality accessory kit for your 3D gate:
- A stainless steel lock
- Two adjustable, hot-dip galvanized hinges (M16 diameter)
- Two aluminum handles
- A steel strike plate
OEM & Customization Options
- Frame & panel: Custom frame sizes and 3D panel specifications available
- Finish & color: Standard RAL 6005 / RAL 7016; custom RAL colors available on request
- Post compatibility: Hinge length can be tailored to match your specific post cross-section
- Opening configuration: Reversible opening direction (push/pull, right/left) available
