The advantages of Arch Swing Gate:
✅ Arch decorative outlook
✅ Heavy thick tubing build
✅ Adjustable opening angle
Residential
Parks
Public
Industrial
Product Basic Parameters

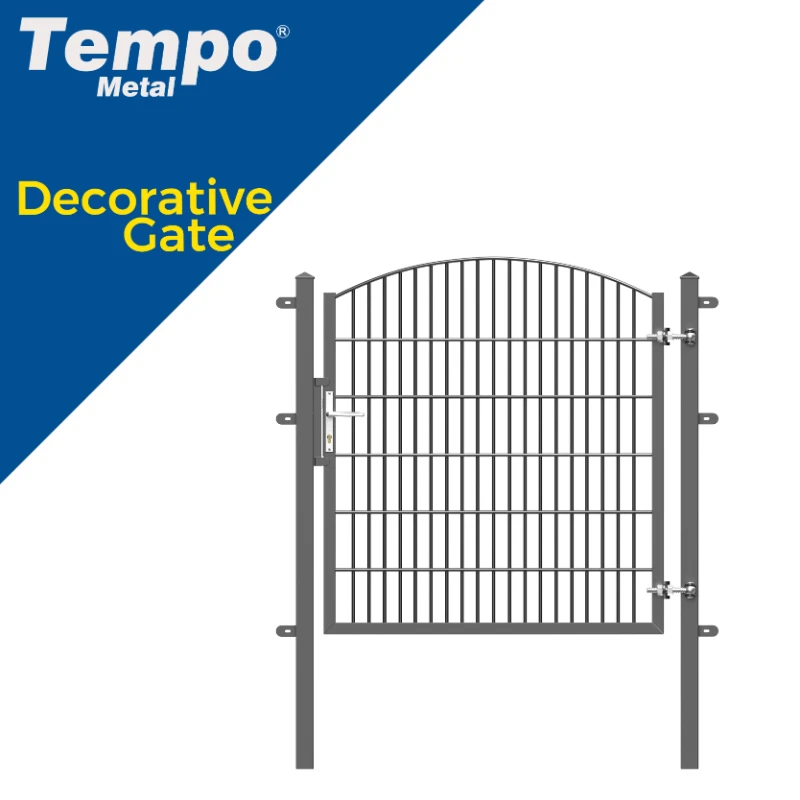

This is an exclusive modern arched swing gate, perfectly matched with arched decorative fencing series. Built with heavy-duty square tubing & welded mesh, it features adjustable opening direction and full set of standard hardware for convenient on-site installation.
| Brand: | TEMPO METAL |
| Clear opening: | 1170 mm (1180 mm with 90° hinge) |
| Width including posts: | 1330 mm (1340 mm with 90° hinge) |
| Leaf width: | 1070 mm |
| Wire thickness: | 6/6/6 mm or 8/6/8mm |
| Frame tube: | 40 x 40 mm |
| Post tube: | 80 x 80 mm |
| Opening angle: | 90° or 180° (selectable) |
| Color: | Green RAL 6005 Grey RAL7016 |
| Post length: | 1100 mm / 1300 mm / 1500 mm |
Available in multiple colors & customizable heights, extra-long concrete embedding posts ensure stable fixation. Complete accessory package helps flexible direction adjustment to meet diverse installation demands.
Built durable with thick square tube & multi optional powder coating
Flexible height range: 0.8m–2.0m with fixed customizable width
Sturdy arch frame with reinforced concrete embedding posts
Free 90°/180° adjustable opening direction & full set hardware
Various RAL standard colors to coordinate matching fence series
Opening Method
The opening direction of the CreaZen gate leaf
Right-hand or left-hand opening
Right-hand or left-hand pulling opening
You choose during assembly.
Installation Method
The installation of the CreaZen gate can be adapted to your site
Surface-mounted or in-ground installation
Concrete base or direct burial mounting
You choose according to your ground conditions.
Why Choose Us
We are a tusted monufacturer of high quaity fencing solutions, dedicated to delivering roducts that combine structura stength. losting beouty and relioble perfomance.
Premium quality stems from exquisite craft and solid factory strength, backed by official certificationsPrecision Welding | Professional Spraying | Secure Packaging Certified & Reliable Quality.
OEM & Customization Support OEM

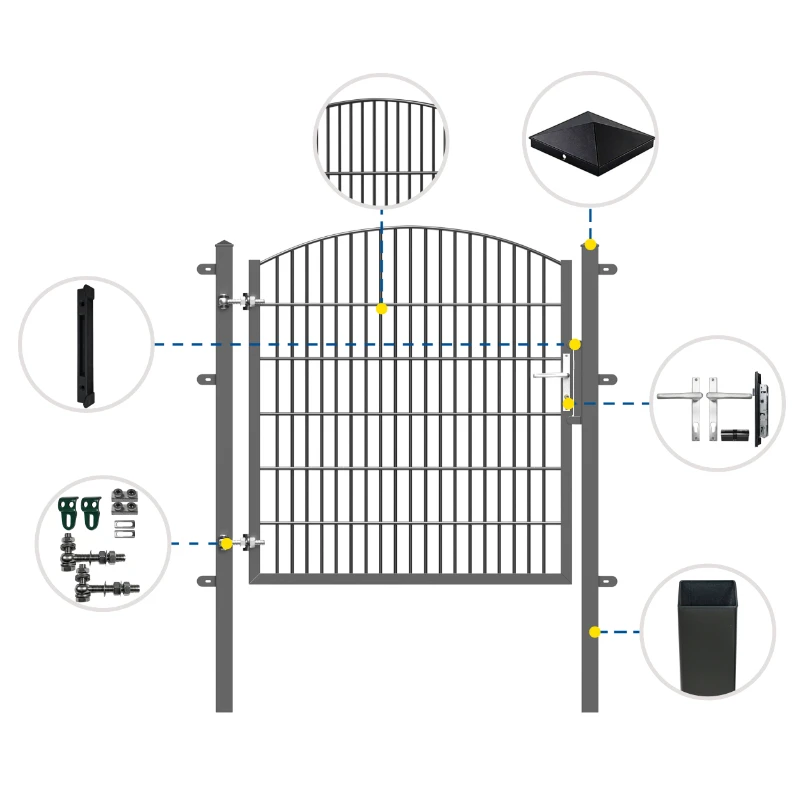

Accessories Included with Your Gate
We will deliver a complete, high-quality accessory kit for your gate:
- A stainless steel lock
- Two adjustable, hot-dip galvanized hinges (M16 diameter; hinge length matched to your post cross-section)
- Two aluminum handles
- A steel strike plate
OEM & Customization Options
- Structure & dimensions: Custom frame sizes and wire specifications available
- Security design: Adjustable bar spacing to meet specific security requirements
- Finish & color: Galvanized + polyester-coated finish; custom RAL colors available on request
- Post compatibility: Hinge length can be tailored to match your specific post dimensions
- Opening configuration: Reversible opening direction for flexible installation (right-hand push / left-hand pull)
