The advantages of the R20 Double Gate:
- High strength & durability
- Universal fencing compatibility
- Reliable medium-security performance
Residential
Parks
Public
Industrial
Product Basic Parameters

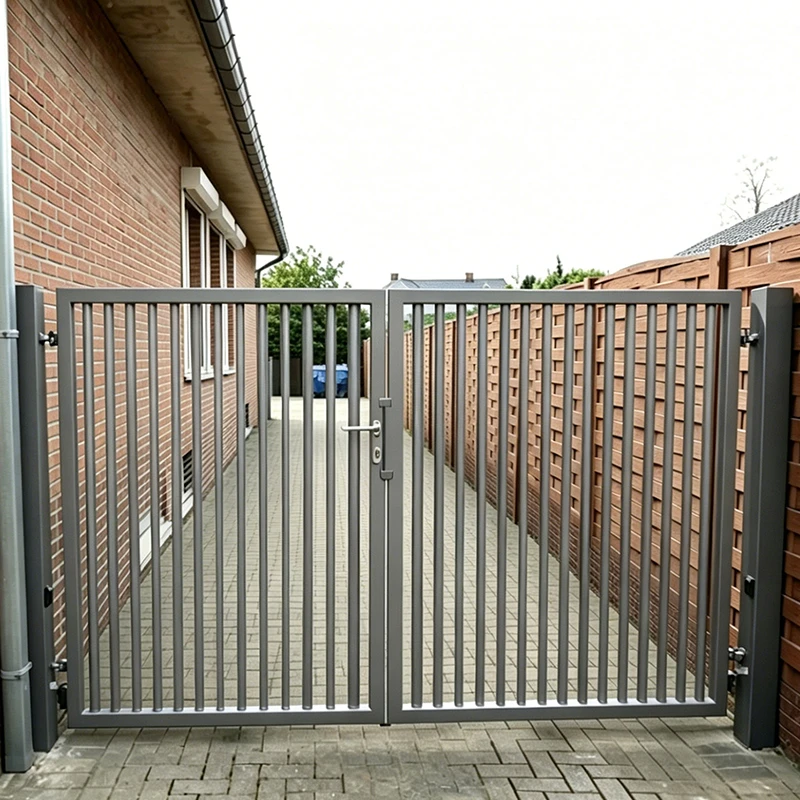

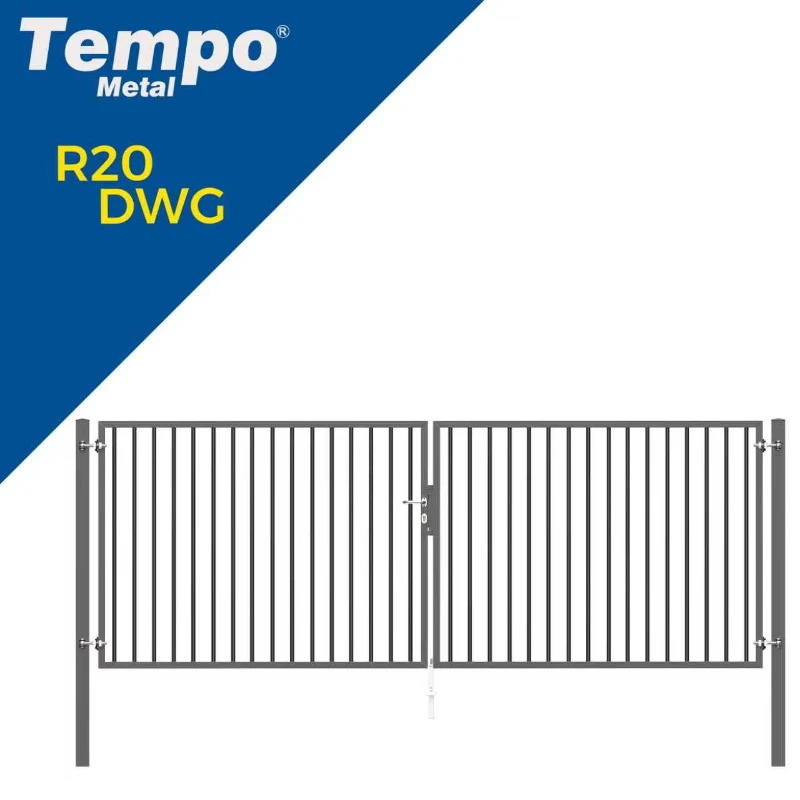

The R20 Double Gate is a robust swing gate with R20mm square bar infill, suitable for both commercial and residential use. It is fully compatible with all types of fencing and available in multiple color options.
| Surfacetreatment | Galvanized+Powder coating |
| Colors | Green RAL6005 Grey RAL7016 and other colors |
| Height | 1.00m I 1.20m l 1.50m l 1.80m l 2.00m |
| Width | 2.00m l 3.00m l 4.00m |
| Filling | Bars ø20 mm |
| Bar Distance | Maximum spacing 120 mm |
| Post | 60x60mm l 80x80mm |
| Frame | 40x40mm |
| Accessories | Adjustable M16 hinges lock and cylinder |
| Opening | 110° pushing straight (reversible) |
| Options | Different Gate Accessories |
Built with a heavy-duty 40x40x1.5mm welded frame and galvanized + polyester-coated posts, this gate delivers exceptional strength and durability. The R20mm square bars are welded at 110° to the frame, with a 110mm center-to-center spacing that meets high security standards, making it ideal for medium-security applications.
Built to last with galvanized + polyester-coated finish
Versatile for both commercial and residential applications
Robust R20mm square bar structure with 110mm spacing
Adjustable M16 hinges for smooth, reversible opening
Multiple color options available to match any fencing style
Opening Method
The opening direction of the CreaZen gate leaf
Right-hand or left-hand opening
Right-hand or left-hand pulling opening
You choose during assembly.
Installation Method
The installation of the CreaZen gate can be adapted to your site
Surface-mounted or in-ground installation
Concrete base or direct burial mounting
You choose according to your ground conditions.
Why Choose Us
We are a tusted monufacturer of high quaity fencing solutions, dedicated to delivering roducts that combine structura stength. losting beouty and relioble perfomance.
Premium quality stems from exquisite craft and solid factory strength, backed by official certificationsPrecision Welding | Professional Spraying | Secure Packaging Certified & Reliable Quality

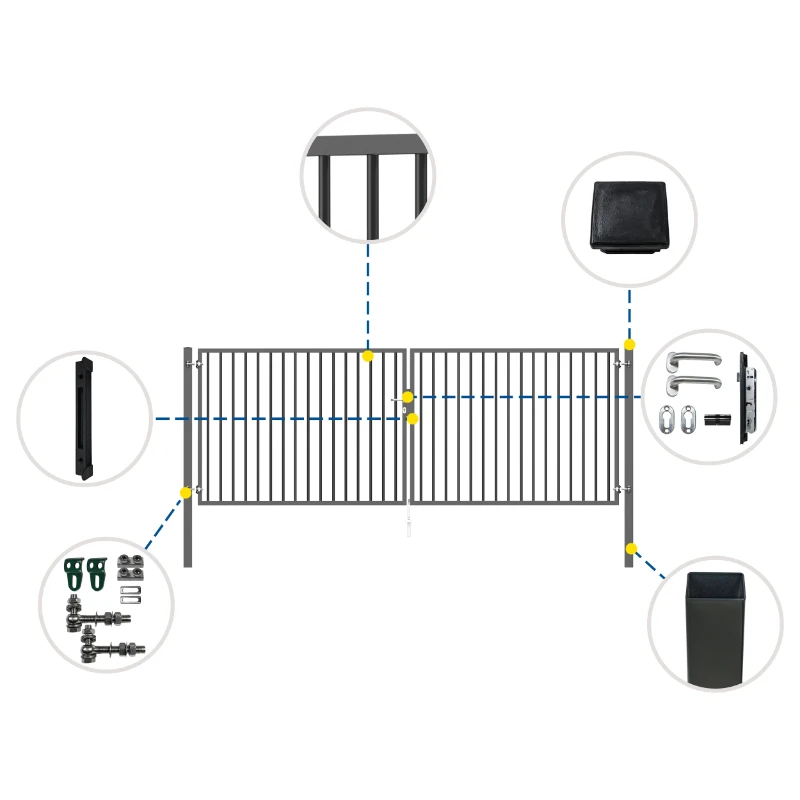

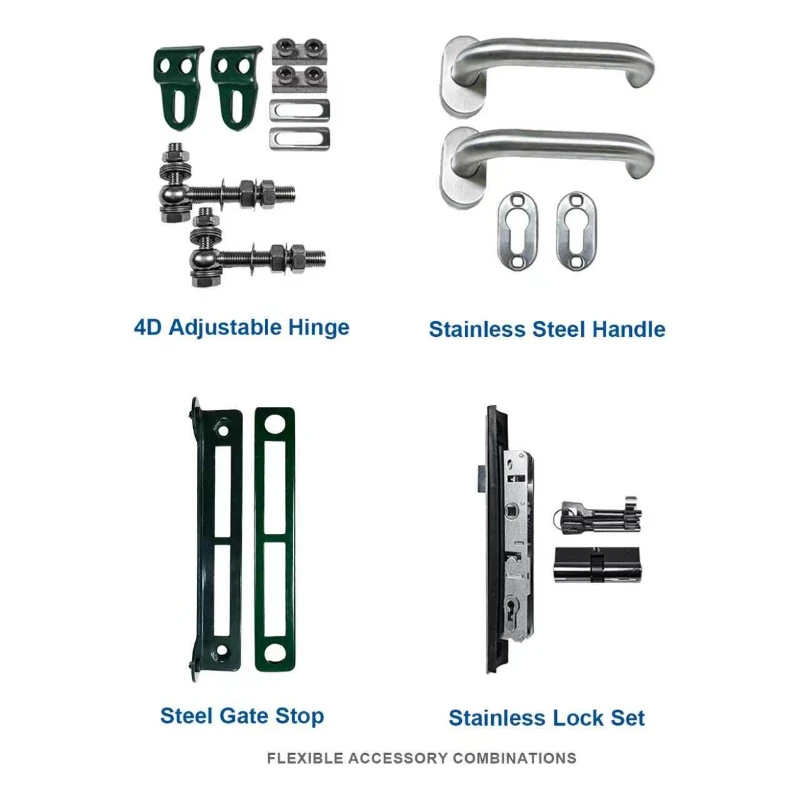

Accessories included with your gate
We will deliver a complete, high-quality accessory kit for your R20 double gate:
- A stainless steel lock
- Two adjustable, hot-dip galvanized hinges (M16 diameter; hinge length matched to your post cross-section)
- Two aluminum handles
- A steel strike plate
OEM & Customization Options
- Structure & dimensions: Custom frame sizes and square bar specifications available
- Security design: Adjustable bar spacing to meet specific security requirements
- Finish & color: Galvanized + polyester-coated finish; custom RAL colors available on request
- Post compatibility: Hinge length can be tailored to match your specific post dimensions
- Opening configuration: Reversible opening direction for flexible installation (right-hand push / left-hand pull)
