Key Advantages of the R20 Gate:
- Robust construction with 20mm square bars
- High security with 110mm bar spacing
- Durable galvanized + polyester-coated finish
Residential
Parks
Public
Industrial
Product Basic Parameters

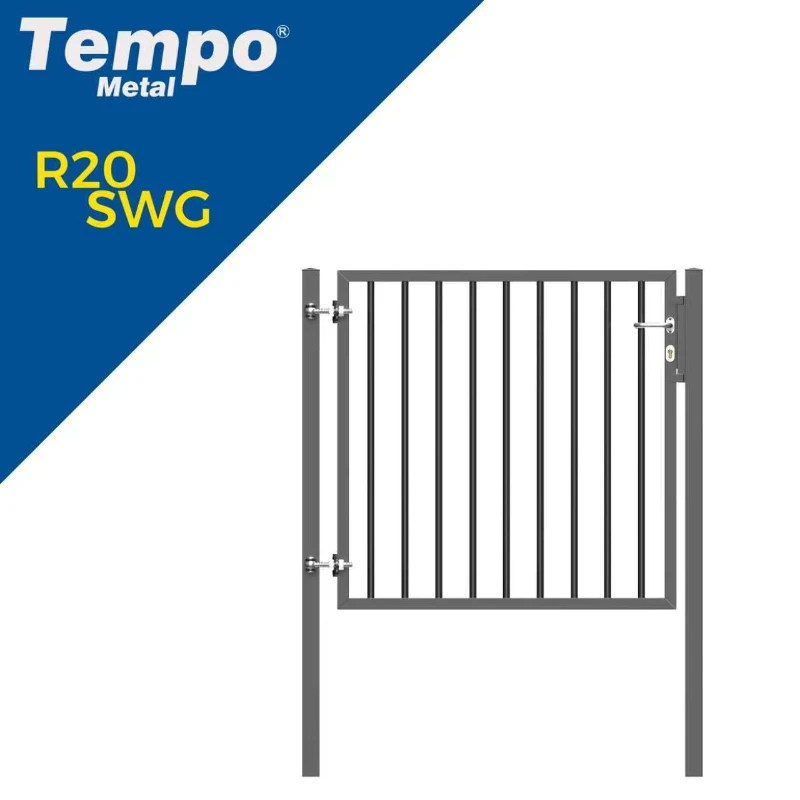

The R20 swing gate features sturdy 20mm square bars. Built with a heavy-duty 40×40×1.5mm welded frame, it is paired with galvanized and polyester-coated posts for superior corrosion resistance and long-lasting performance.
The SQ20 gate is the ideal solution for your security needs. Its high-quality materials ensure exceptional strength and durability.
| Surfacetreatment | Galvanized+Powder coating |
| Colors | Green RAL6005 Grey RAL7016 and other colors |
| Height | 1.00m I 1.20m l 1.50m l 1.80m l 2.00m |
| Width | 1.00m I 1.20m l 1.50m l 2.00m l 3.00m |
| Filling | Bars ø25 mm |
| Bar Distance | Maximum spacing 120 mm |
| Post | 60x60mm |
| Frame | 40x40mm |

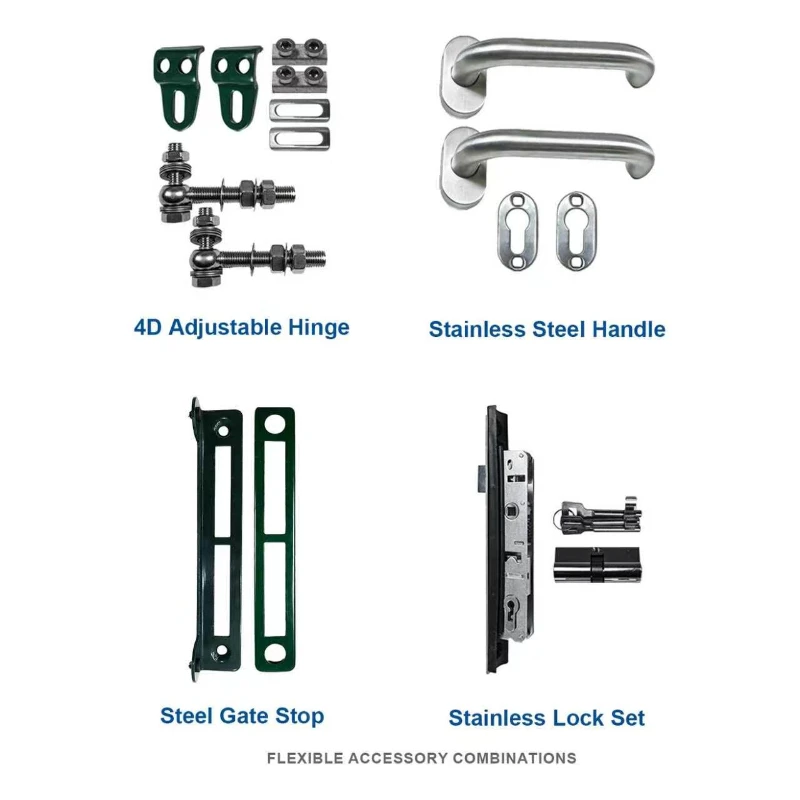

| Accessories | Adjustable M16 hinges lock and cylinder |
| Opening | 180° pushing straight (reversible) |
| Options | Different Accessories |
Engineered for medium-level security, the gate’s square bars are welded at 110° to the frame for maximum strength, with a center-to-center spacing of 110mm that meets strict security standards. It delivers reliable protection while maintaining a clean, modern aesthetic.
Built to last with galvanized + polyester-coated finish
Heavy-duty 40×40×1.5mm welded frame
20mm square bars with 110mm center-to-center spacing
Adjustable M16 hinges for smooth, reversible operation
Multiple RAL color options to match any fencing style
Opening Method
The opening direction of the CreaZen gate leaf
Right-hand or left-hand opening
Right-hand or left-hand pulling opening
You choose during assembly.
Installation Method
The installation of the CreaZen gate can be adapted to your site
Surface-mounted or in-ground installation
Concrete base or direct burial mounting
You choose according to your ground conditions.
Why Choose Us
We are a tusted monufacturer of high quaity fencing solutions, dedicated to delivering roducts that combine structura stength. losting beouty and relioble perfomance.
Premium quality stems from exquisite craft and solid factory strength, backed by official certificationsPrecision Welding | Professional Spraying | Secure Packaging Certified & Reliable Quality
OEM & Customization Options
- Structure & dimensions: Custom frame sizes and square bar specifications available
- Security design: Adjustable bar spacing to meet specific security requirements
- Finish & color: Galvanized + polyester-coated finish; custom RAL colors available upon request
- Post compatibility: Hinge length can be tailored to match your specific post dimensions
- Opening configuration: Reversible swing direction for flexible installation (right-hand push / left-hand pull)
